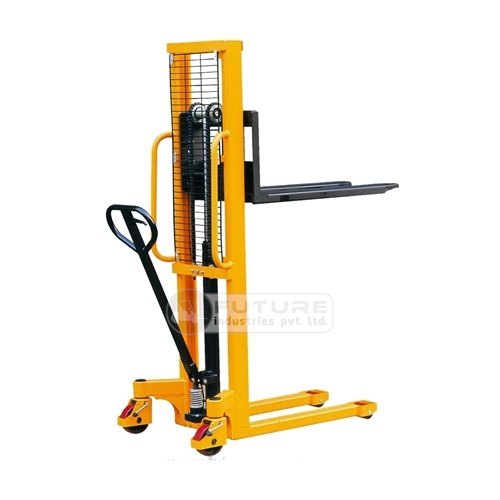

With immense experience in this domain, we are a prominent organization engaged in offering an unparalleled range of FIE-112 1 Ton Manual Stacker. We bring forth an extensive range of hydraulic stacker which is offered to the clients in different types of wheels such as nylon wheels, polyutherane wheels, rubber wheel and cast iron wheels. Offered to the clients at most moderate prices, this Manual Hand Stacker is available in various forms which includes manual, semi-electric and fully-electric operated stacker. This stacker is widely used in shops, containers, ware houses, production industries, die handling and industrial stores. Some of the features that are incorporated in our stacker are robust construction, durability and longer working life.
Lifting speed | 14 mm/stroke |
Maximum Fork Height | 2000 mm |
Overall Height | 2100 mm |
Overall Length | 1500 mm |
Overall Width | 400 - 865 mm |
Self Weight | 250/260/285 kg |
Wheelbase | 1100 mm |
Turning Radius | 1250 mm |
Rated Load | 1 Ton |
Load Center | 600 mm |
Brand | FIPL |
Fork Width | 550/600/300-850 mm |
Fork Length | 1150mm |
Usage/Application | Material Handling |
Key Features of FIE-112 1 Ton Manual Stackers:
WHY US!
Applications:
Manual Hydraulic Stacker Technical Specifications:
Model | Weight | SFH1016G | SFH1516G | SFH1025G | SFH1030G |
Capacity | kg | 1000 | 1500 | 1000 | 1000 |
Lifting Height Max. | mm | 1600 | 1600 | 2500 | 3000 |
Outer width of forks | mm | 690 | 690 | 690 | 690 |
Fork Length | mm | 1100 | 1100 | 1100 | 1100 |
Lifting Height Min. | mm | 85 | 85 | 85 | 85 |
Fork Width | mm | 160 | 160 | 160 | 160 |
Base Legs I.D. | mm | 365 | 365 | 365 | 365 |
Base Legs O.D. | mm | 625 | 625 | 625 | 625 |
Overall Length | mm | 1600 | 1600 | 1600 | 1600 |
Overall Width | mm | 725 | 725 | 725 | 725 |
Overall Height | mm | 2032 | 2032 | 1830 | 2090 |
Load Center | mm | 610 | 610 | 610 | 610 |
Rear Caster | mm | 180 | 180 | 180 | 180 |
Front Wheel | 74 | 74 | 74 | 74 | |
Rear Wheel | kg | 180 | 180 | 180 | 180 |
Wheel Type | 2 Rigid,2 Swivel | 2 Rigid,2 Swivel | 2 Rigid,2 Swivel | 2 Rigid,2 Swivel |
