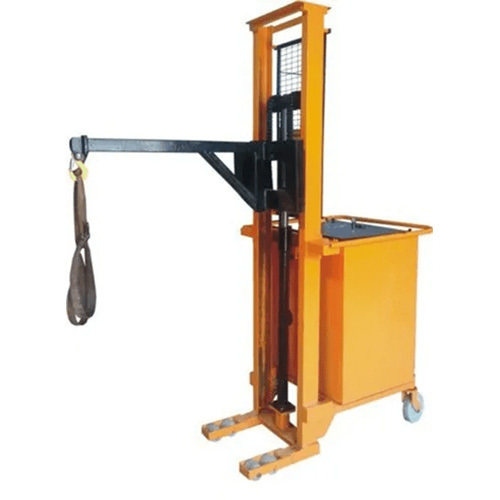

Manual Hand Stacker

48000 INR/Piece

Get a Price/Quote

Product Details:

Condition New
Power Source Hydraulic
Warranty Yes
Supply Ability : 500 Unit Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Price 48000 INR/Piece
Minimum Order Quantity 1 Unit
Price Range 25000.00 - 95000.00 INR/Piece

Product Specifications

Power Source Hydraulic
Warranty Yes
Condition New

Trade Information

Supply Ability 500 Unit Per Month
Delivery Time 1 Week
Main Domestic Market All India

Product Description

Being one of the renowned manufacturers, exporters and suppliers in this domain, we are offering our clients the finest quality Manual Hand Stacker. This stacker is manufactured by utilizing premium grade components and other allied materials with the help of pioneering technology as per the set industry quality standards. Our offered stacker is used in various industries like shipping, construction and others for loading heavy goods. We are offering this Manual Hand Stacker in various weight capacity at market leading prices.

Manual Hand Stacker Advantages:

These hand stackers are widely demanded by various industries owing to their less power consumption.
Offered hydraulic hand stackers have sturdy design and are very easy to use.
As offered hydraulic hand stackers are fitted with wheels, these are easy to move from one place to another.
Our hydraulic stackers are light weight and are known for corrosion resistance.

Manual Stacking Machine Specifications:

Capacity: 500kgs to 1.5ton
Fork length: 1150mm/as per customer requirement
Fork width: 600mm/as per customer requirement
Fork: 150mm
Lower height: 90mm/100mm
Raised height: 2500mm/3000mm/as per customer requirement
Mast system : single/double mast system
Lower speed: continuously variable
Pump : simple and reliable hydraulic system
Wheels: dust free nylon wheels with double sealed bearings.
Wheels steering and support wheels : 2 nylon wheels¸ 180 x 50mm
Load wheels : 4 nylon wheels¸ 80 x 70mm
"text-align: justify;">Handle : draw bar with finger protection clamp and release handle
Structure: simplex single mast structure made from heavy duty channel section. It would be supported by heavy-duty deep grooved guide rollers. Forks lifting would be by means of 2 nos. Duplex chain & design pulley.
Hydraulic unit: hydraulic cylinder part would be supported by single acting cylinder piston rod is inducted with hard chrome plated. The sealing arrangement is of polyurethane seals, PTFE seals for long life smooth working. Leak proof viper seals will be given to protect from ingress dirt & dust.
Hydraulic electric power pack unit (optional)
M/s oil tank 25 ltrs. (w/o oil) 1nos
Gear pump 1nos
Pressure gauge 1nos
Pressure relief valve 1nos
Many fold block 1nos
Suction filters 1nos
A. C electric solenoid valve 1nos
Pilot operated check valve 1nos
Phase a. C motor 1nos
Flow control valve 1nos
Completed fitting accessory 1nos
Height safety control: limit switch for height safety control.
Cable : 3 meter standard length cable
Silent in operation
Easy to operate
Light and manoeuvrable
Minimum maintenance
Economical
Compact
Versatile

Product details

Lifting speed	14 mm/stroke
Maximum Fork Height	2000 mm
Overall Height	2100 mm
Overall Length	1500 mm
Overall Width	400 - 865 mm
Self Weight	250/260/285 kg
Wheelbase	1100 mm
Turning Radius	1250 mm
Rated Load	1 Ton
Load Center	600 mm
Brand	FIPL
Fork Width	550/600/300-850 mm
Fork Length	1150mm
Usage/Application	Material Handling
