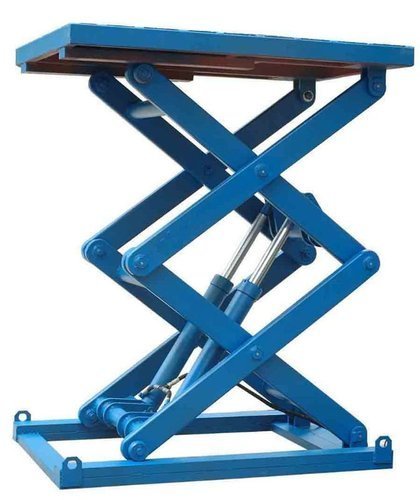

Hydraulic Lifting Table

Hydraulic Lifting Table
Hydraulic Lifting Table
Product Code : 154
Brand Name : future industries
Product Specifications
  • Condition
  • New
  • Usage
  • Commercial & Industrial
  • Lifting Capacity
  • Kilograms (kg)
  • Max. Lifting Height
  • Millimeter (mm)
  • Power Source
  • Electric
  • Power Consumption
  • Very Less
  • Voltage
  • 220
  • Attributes
  • Strong, Durable, Easy To Operate, Consume Less Power
Product Description

Since our inception in the year 2008, we have been engaged in manufacturing, exporting and supplying superior quality Hydraulic Lifting Table. This table is widely used for lifting the various types of goods and materials in different industries. The offered table is manufactured under the strict observation of our adept professionals by utilizing the finest quality raw materials with the aid of modern techniques. Additionally, our clients can avail this Hydraulic Lifting Table in several technical specifications at competitive prices.

Features:

  • Rugged design

  • Excellent performance

  • Smooth operations

  • Longer service life

Specification:

  • Available capacity: From 1000 Kgs to 10000 Kgs
  • Available lifting height: FROM 200 mm - 6000 mm
  • Available Options: manual, Electric operated & Battery operated
  • Choice: length, width, & capacity as per Requirement

Further Details

Hydraulic lift tables are perfect, innovative material handling equipment for loading / unloading works. These equipment are in lowered position, pit set flushes with floor level, therefore doesn't interrupt other movements when not in action. These are outfitted with AC hydraulic power pack, including hydraulic gear pump, electric motor, solenoid valve, oil level indicator, oil reservoir, pressure release valve & pressure gauge. There is a hydraulic cylinder made from hard-chrome plated piston rod and seamless tube. The lift height and load capacity is up to 8 tonnes.

Our equipment has the concepts of durability, low maintenance & ability to bear high loads. Also, we keep up with various specifications to meet the different requirements of clients. We make available the equipment in mobile versions as well.

Durability & Quality:

  • Structural steel channels incorporate all the scissors rollers, ensuring excellent load stability.
  • High-impact, spiral wound bearings at all pivot points that provide maintenance-free nature, and resistance to abrasion, uneven loads & impacts.
  • Minimized leg deflection due to spreading / twisting under high, uneven loading; with structural cross-members at all pinned joints in the assembly of scissors.
  • Hydraulic cylinders with two-piece, self-aligning piston rods to transfer minimum side forces to the cylinder hinges / pins, significant reduction in wear.
  • Structural steel channels in upper as well as lower frames that provide extra rigidity & resistance to twisting, bending of the lift under load.
  • Solid steel legs and added stiffeners ensure total stability, and straight repeatable roller tracking.
  • Joints - the most critical wear components in the lift, feature 100,000 psi, chrome-plated, ultimate-strength pins for superior load strength & long life.
  • Minimal 1/4-inch-thick steel-reinforced platform decreases deck deflection, increases load stability, and largely extends the life of platform deck.
